In a Hadoop cluster, find how to contribute limited/specific amount of storage as slave to the cluster?

Step 1: Identify Available Storage

Before you embark on allocating storage to your Hadoop cluster, it’s crucial to have a clear understanding of the existing storage resources on the slave node. The goal is to identify the disk or partition that you intend to contribute to the Hadoop cluster. Here’s a more detailed breakdown:

1.1 Check Current Disk Space:

Begin by using the df (disk free) command to display information about the current disk space on the slave node.
df -h
The -h flag stands for "human-readable," making the output more easily understandable. This command provides an overview of the existing mounted filesystems along with their sizes, used space, and available space.

1.2 Identify the Disk or Partition:

Analyze the output of the df command to identify the disk or partition you want to allocate to the Hadoop cluster.
Disks are typically represented as /dev/sdX (e.g., /dev/sda), and partitions as /dev/sdXY (e.g., /dev/sda1).

1.3 Considerations for Selection:

Take into account the capacity and usage of each disk or partition.
Consider selecting a disk or partition with sufficient free space for Hadoop storage needs.

1.4 Example Output:

Filesystem      Size  Used Avail Use% Mounted on
/dev/sda1       20G   8.2G   11G  43% /
/dev/sdb1       100G  20G   80G  20% /data

In this example, /dev/sdb1 is a partition with 100GB total size, 20GB used, and 80GB available. This is a candidate for contributing to the Hadoop cluster.

1.5 Additional Commands:

You can use commands like lsblk or fdisk -l for more detailed information about the available storage devices.

lsblk

This command provides a hierarchical view of the storage devices and their respective partitions.

1.6 Backup Considerations:

Before proceeding with any partitioning or formatting, ensure you have a backup of any critical data on the selected disk or partition.

Step 2: Partition the Disk

Partitioning is the process of dividing a physical disk into distinct, isolated sections known as partitions. This step is crucial when allocating storage for a Hadoop cluster. Here’s a comprehensive guide:

2.1 Use a Partitioning Tool:

Linux offers several partitioning tools, and one commonly used tool is fdisk. Launch fdisk for the selected disk:

sudo fdisk /dev/sdX

Replace /dev/sdX with the identifier of the chosen disk (e.g., /dev/sdb).

2.2 Understand fdisk Commands:

Once inside fdisk, you'll be presented with a command-line interface. Familiarize yourself with the key commands:
n: Create a new partition
p: Print the partition table
w: Write changes to disk and exit

2.3 Create a New Partition:

Type n to create a new partition and follow the prompts:
Select the partition type (usually primary).
Specify the starting and ending cylinder (press Enter for default).
This process defines the boundaries of the new partition.

2.4 Verify the Partition Table:

Use p to print the partition table and verify that the new partition is listed.

2.5 Save Changes:

Type w to write the changes to disk and exit fdisk. This step commits the partitioning changes.

2.6 Example fdisk Session:

Command (m for help): n
Partition type
   p   primary (0 primary, 0 extended, 4 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (1-4, default 1):
First sector (2048-209715199, default 2048):
Last sector, +sectors or +size{K,M,G,T,P} (2048-209715199, default 209715199):

Command (m for help): pDisk /dev/sdb: 100 GiB, 107374182400 bytes, 209715200 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x11223344Device     Boot Start       End   Sectors  Size Id Type
/dev/sdb1        2048 209715199 209713152  100G 83 LinuxCommand (m for help): w

2.7 Additional Partitioning Tools:

While fdisk is commonly used, other tools like parted or gparted offer graphical interfaces for partitioning.

2.8 Considerations:

Be cautious while partitioning to avoid unintended data loss. Always double-check your selections before saving changes.

2.9 Backup Important Data:

Before proceeding with partitioning, ensure you have a backup of any critical data on the selected disk.

Certainly! Let’s explore Step 3, which involves creating a new file system on the newly created partition.

Step 3: Create a New File System

After partitioning the selected disk, the next step is to format the newly created partition with a file system suitable for Hadoop. In this example, we’ll use the ext4 file system.

3.1 Format the Partition:

Use the mkfs (make file system) command to format the partition. For ext4, the command would be:

sudo mkfs -t ext4 /dev/sdXY

Replace /dev/sdXY with the identifier of the newly created partition (e.g., /dev/sdb1).

3.2 Alternative File Systems:

Depending on your requirements, you might choose a different file system like xfs or btrfs. Ensure compatibility with Hadoop.

sudo mkfs -t xfs /dev/sdXY

3.3 Example mkfs Session:

sudo mkfs -t ext4 /dev/sdb1

3.4 File System Verification:

After formatting, you can use the blkid command to verify the file system type of the partition.

blkid /dev/sdXY

This command will display information about the file system type, UUID, and other details.

3.5 Backup Considerations:

Before formatting, ensure you have a backup of any crucial data on the selected partition, as formatting erases existing data.

3.6 Mount Point Preparation:

Establish a directory that will serve as the mount point for the new partition. Conventionally, this could be under /mnt or another suitable location.

sudo mkdir /mnt/hadoop_data

Step 4: Mount the Partition

Now that you’ve successfully created a new file system on the partition, the next step is to mount it to a specified directory, establishing a connection between the partition and the file system. Follow these detailed steps:

4.1 Mount the Partition:

Use the mount command to mount the partition to the designated directory. For instance:

sudo mount /dev/sdXY /mnt/hadoop_data

Replace /dev/sdXY with the identifier of the partition (e.g., /dev/sdb1) and /mnt/hadoop_data with the chosen mount point.

4.2 Verify Mounting:

Confirm that the partition is correctly mounted by listing the contents of the mount point:

ls /mnt/hadoop_data

If the mount was successful, you should see an empty directory or any existing data on the partition.

4.3 Persistence Across Reboots (Optional):

To ensure that the partition is automatically mounted after system reboots, add an entry to the /etc/fstab file.

echo "/dev/sdXY /mnt/hadoop_data ext4 defaults 0 0" | sudo tee -a /etc/fstab

This entry specifies the details of the partition, mount point, file system type, and mount options.

4.4 Adjusting Mount Options (Optional):

Depending on your specific requirements, you might need to adjust mount options in the /etc/fstab entry. Common options include rw for read/write access and defaults for standard options.

4.5 Example Mounting Session:

sudo mount /dev/sdb1 /mnt/hadoop_data

Step 5: Update /etc/fstab for Persistent Mounting (Optional)

Ensuring that your partition is automatically mounted upon system reboots is crucial for the stability and consistency of your Hadoop cluster. This optional step involves updating the /etc/fstab file to include an entry for the newly created partition.

5.1 Open /etc/fstab for Editing:

Use a text editor, such as nano or vim, to open the /etc/fstab file:

sudo nano /etc/fstab

Replace nano with your preferred text editor.

5.2 Add an Entry for the Partition:

At the end of the file, add an entry for the partition in the following format:

/dev/sdXY   /mnt/hadoop_data   ext4   defaults   0   0

Adjust the entry based on your specific configuration, ensuring it matches the partition identifier, mount point, file system type, and desired mount options.

5.3 Save and Exit:

Save the changes in your text editor and exit.
For nano, press Ctrl + X, then press Y to confirm changes, and finally press Enter to exit.

5.4 Verify /etc/fstab Entry:

After updating /etc/fstab, use the cat command to verify that your entry has been added:

cat /etc/fstab

Ensure that the new entry is correctly listed.

5.5 Reboot and Test:

To test the persistence of the mount, you can either reboot the system or manually unmount and remount the partition:

sudo umount /mnt/hadoop_data sudo mount -a

5.6 Considerations:

Review the /etc/fstab entry to ensure accuracy and consistency with your system configuration.
Ensure that the chosen mount point (/mnt/hadoop_data in this example) aligns with your Hadoop storage strategy.

Step 6: Configure Hadoop

Now that the storage infrastructure is in place, it’s time to configure Hadoop to recognize and utilize the newly added storage. This step involves updating Hadoop’s configuration files to include the path to the mount point where your partition is mounted.

6.1 Locate Hadoop Configuration Files:

The configuration files for Hadoop are typically found in the /etc/hadoop directory. Common files include hdfs-site.xml and core-site.xml.

cd /etc/hadoop

6.2 Open Configuration Files for Editing:

Use a text editor to open the relevant configuration files. For example, you can use nano:

sudo nano hdfs-site.xml sudo nano core-site.xml

6.3 Update hdfs-site.xml:

In hdfs-site.xml, add or modify the property for fs.datanode.data.dir to include the path to the mount point:
xmlCopy code
<property> <name>dfs.datanode.data.dir</name> <value>/mnt/hadoop_data/datanode</value> </property>
Ensure that the path matches the mount point for your partition.

6.4 Update core-site.xml:

In core-site.xml, add or modify the property for fs.defaultFS to include the Hadoop File System URI:
xmlCopy code
<property> <name>fs.defaultFS</name> <value>hdfs://localhost:9000</value> </property>
Adjust the URI based on your Hadoop setup.

6.5 Save and Exit:

Save the changes in your text editor and exit.
For nano, press Ctrl + X, then press Y to confirm changes, and finally press Enter to exit.
6.6 Restart Hadoop Services:
Restart the Hadoop services to apply the configuration changes.
sudo service hadoop-namenode restart sudo service hadoop-datanode restart

6.7 Verify Configuration:

Check the Hadoop logs or use Hadoop commands to ensure that the newly added storage is recognized and utilized.

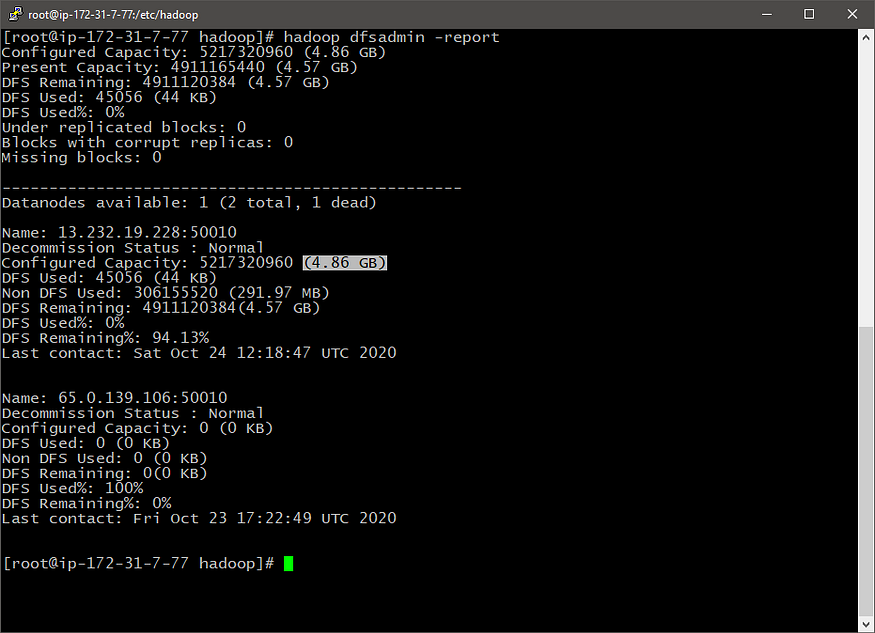

hdfs dfsadmin -report
Look for information related to the configured storage directories.

6.8 Considerations:

Be cautious while modifying Hadoop configuration files. Incorrect changes may impact the stability of your Hadoop cluster.

Step 7: Verify Mounting and Hadoop Integration

After configuring Hadoop to recognize the newly added storage, it’s crucial to verify that the integration is successful. This step involves checking both the mounting status and Hadoop’s acknowledgment of the contributed storage.

7.1 Verify Mounting:

Ensure that the partition is correctly mounted. Use the df command to display information about the currently mounted filesystems:

df -h

Confirm that the mount point (e.g., /mnt/hadoop_data) is listed with the correct size and usage.

7.2 Check Hadoop Logs:

Examine the Hadoop logs to ensure there are no errors related to the newly added storage. The logs are typically located in the /var/log/hadoop/ directory.

sudo tail -f /var/log/hadoop/hadoop-hdfs/*.log

Look for log entries indicating successful recognition of the storage directories.

7.3 HDFS Report:

Utilize Hadoop commands to check the Hadoop Distributed File System (HDFS) report:

hdfs dfsadmin -report

Verify that the configured storage directories are listed and that the storage capacity reflects the contribution from the newly added partition.

7.4 Data Replication Verification:

Confirm that Hadoop is replicating data across the newly added storage. You can check the HDFS blocks and their distribution:

hdfs fsck / -files -blocks -locations

Ensure that the blocks are distributed across the available storage, including the newly added partition.

7.5 Test Data Write and Read:

Perform a simple test by writing data to and reading data from HDFS. This ensures that the Hadoop cluster is functioning properly with the new storage.
hdfs dfs -mkdir /test hdfs dfs -copyFromLocal /path/to/local/file /test hdfs dfs -cat /test/file

7.6 Additional Monitoring (Optional):

Consider implementing additional monitoring tools or commands to continuously track the health and performance of your Hadoop cluster and the newly added storage.

Step 8: Start Hadoop Services

After configuring Hadoop to recognize the newly added storage and verifying its integration, the final step is to start or restart the Hadoop services. This ensures that the changes take effect, and the Hadoop cluster is fully operational with the contributed storage.

8.1 Restart Hadoop Services:

Use the following commands to restart the Hadoop services:
sudo service hadoop-namenode restart sudo service hadoop-datanode restart
These commands restart the NameNode and DataNode services, respectively.

8.2 Verify Service Status:

Check the status of the Hadoop services to ensure they are running without errors:
sudo service hadoop-namenode status sudo service hadoop-datanode status
Confirm that both services are active and not reporting any issues.

8.3 Monitor Logs (Optional):

Optionally, monitor the Hadoop logs for any potential errors or warnings after restarting the services:
sudo tail -f /var/log/hadoop/hadoop-<service-name>/*.log
Replace <service-name> with the specific service you want to monitor (e.g., hadoop-namenode or hadoop-datanode).

8.4 Test Hadoop Functionality:

Perform additional tests to ensure that the Hadoop cluster is functioning correctly with the newly added storage. You can create directories, upload files, and run Hadoop jobs to validate its performance.

8.5 Automate Service Startup (Optional):

If desired, configure the Hadoop services to start automatically upon system boot. This ensures that the services are always available, even after a reboot.
sudo systemctl enable hadoop-namenode sudo systemctl enable hadoop-datanode

Step 9: Optimize and Monitor Hadoop Performance

Now that your Hadoop cluster is configured with the newly added storage, the final step involves optimizing its performance and setting up monitoring mechanisms. This ensures the efficient utilization of resources and allows you to proactively address any issues that may arise.

9.1 Performance Optimization:

Fine-tune Hadoop configuration parameters based on the specifics of your cluster and workload. Key configurations are often found in files like mapred-site.xml and yarn-site.xml.
Adjust parameters such as block size, replication factor, and memory allocation to align with the capabilities of your storage infrastructure.

9.2 Hadoop Resource Manager Configuration:

Configure the Hadoop Resource Manager (YARN) to effectively manage and allocate resources. Adjust the memory settings for both the ResourceManager and NodeManager in yarn-site.xml.

9.3 Data Compression (Optional):

Consider implementing data compression techniques such as Hadoop’s native codec or other compression algorithms. This can reduce storage requirements and improve data transfer efficiency.

9.4 Monitoring Setup:

Implement a monitoring solution to keep track of the Hadoop cluster’s health and performance. Popular monitoring tools include Apache Ambari, Cloudera Manager, or custom scripts with tools like Prometheus and Grafana.

9.5 Establish Alerts:

Set up alerts to notify you of any abnormal behavior or performance degradation. This proactive approach allows you to address issues before they impact the stability of the Hadoop cluster.

9.6 Monitor Disk Usage:

Regularly monitor disk usage on both the newly added storage and existing storage to ensure that you have sufficient capacity. This is especially important in dynamic environments where data volumes may change rapidly.

9.7 Benchmarking (Optional):

Consider running benchmark tests on your Hadoop cluster to evaluate its performance under different workloads. This can help identify bottlenecks and areas for improvement.

9.8 Documentation:

Maintain thorough documentation of your Hadoop configuration, optimizations, and monitoring setup. This documentation is valuable for troubleshooting, future upgrades, and for onboarding new team members.

9.9 Continuous Improvement:

Regularly review and reassess your Hadoop configuration and performance. As your data and workload evolve, adjustments to configurations and optimizations may be necessary.
